1. Structural features:

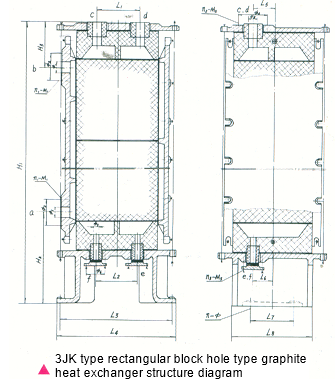

This equipment is composed of a graphite head, a graphite heat exchange block and a sealing gasket between them. Because the heat exchange block only bears pressure and is an integral structure without cementing seams, the structure has high strength and good impact resistance. The side plate of the water seal is cast iron, which is easy to maintain and disassemble.

2. Design parameters:

Design pressure: 0.5 MPa

Design temperature: -10~165 ℃

Heat exchange area: 5~300 ㎡
